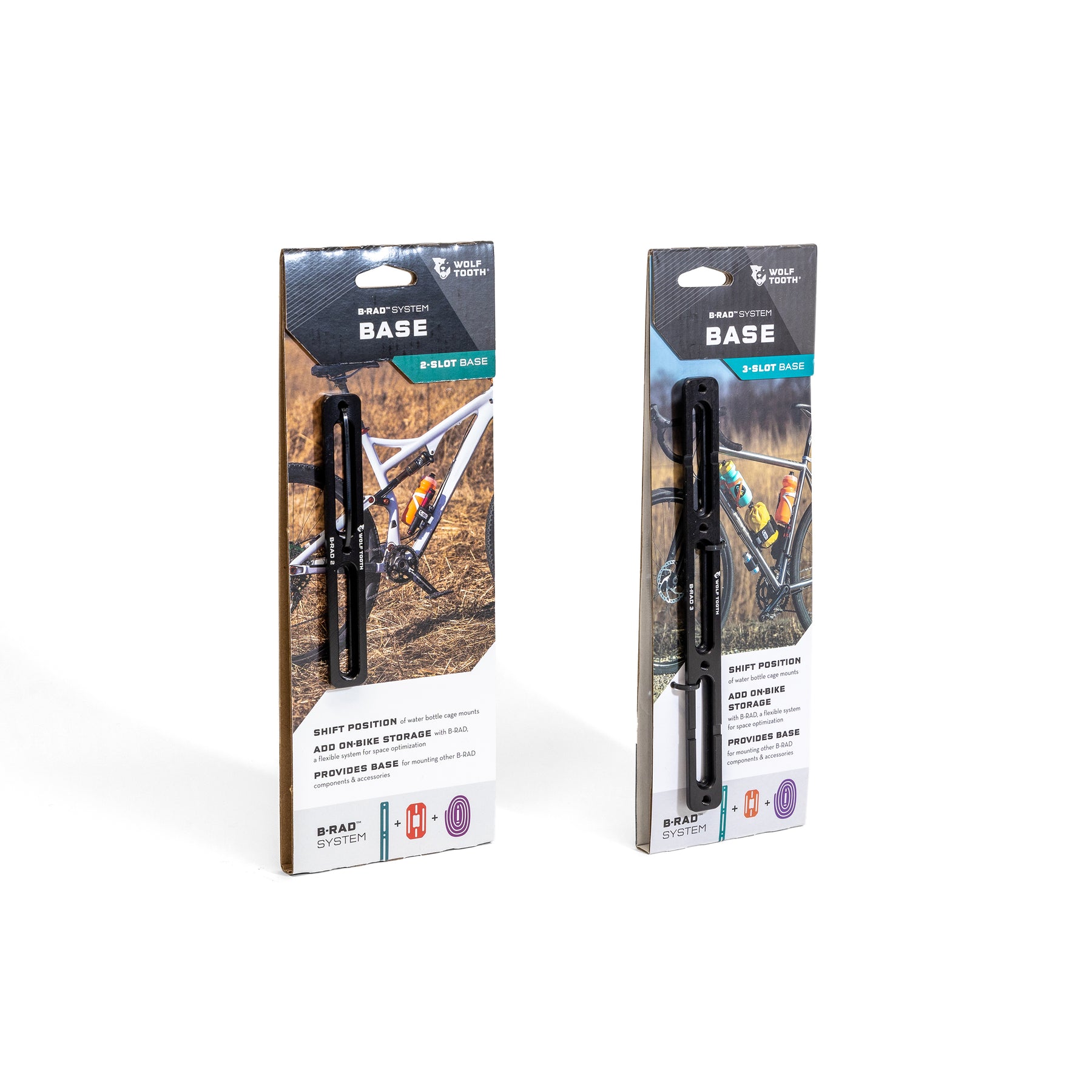

The Wolf Tooth B-Rad Mounting Base clamps to your existing bottle cage mounts and enable you to run a wide range of configurations for bottle, accessory and equipment storage.
Constructed from lightweight but highly durable 6061 T-6 aluminium, the B-Rad bases are sturdy, stalwart add-ons that unlock a raft of configurations for gravel, MTB and road adventures.

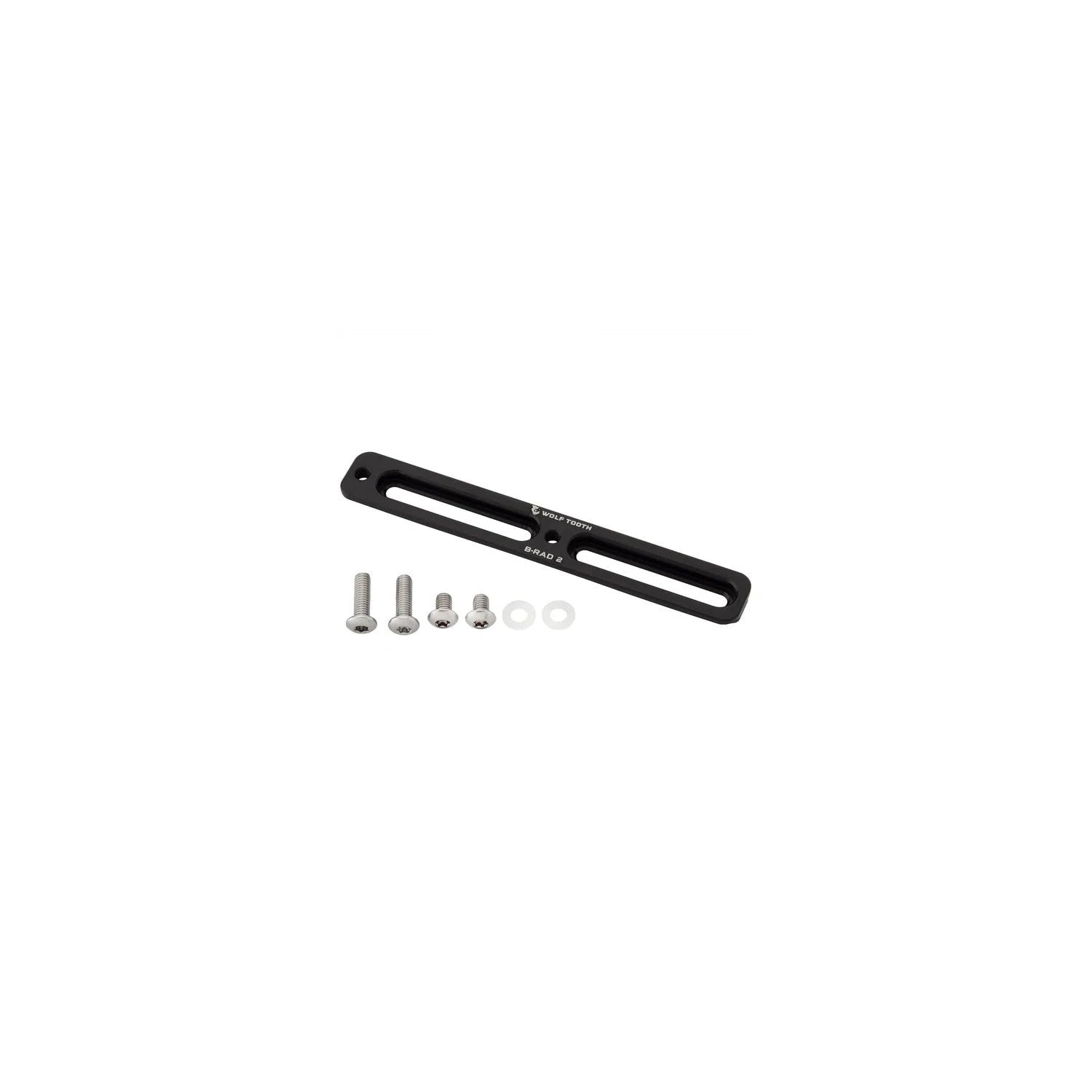

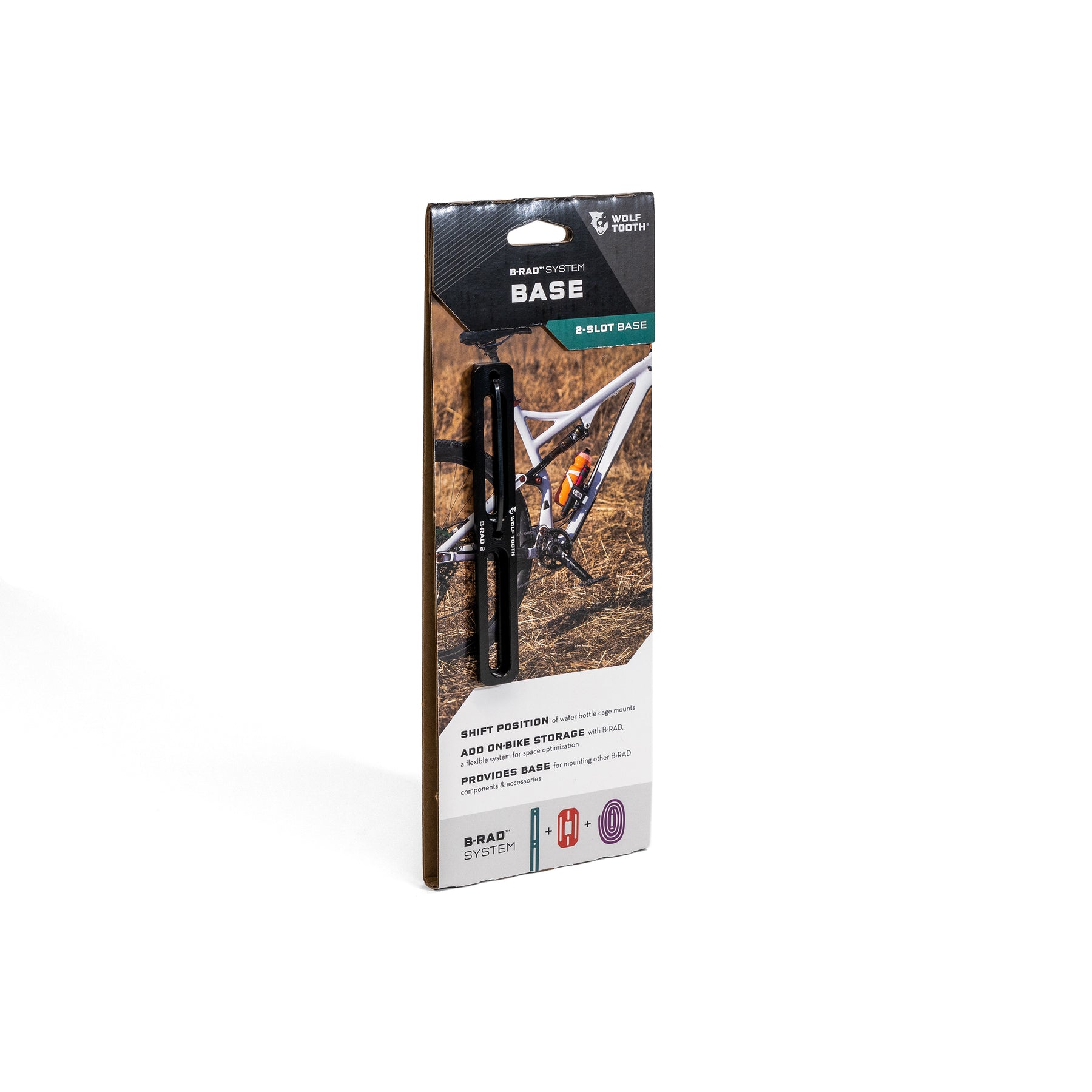

The B-Rad 2 is ideal if you’re running a half-frame bag and want to retain a large water bottle on the seat tube or if you want to run a single bottle on non-standard geometry full-suspension mountain bike.
The 2-slot base can move a bottle or other accessory up to 54mm to an optimal location even on a smaller or dual suspension frame.

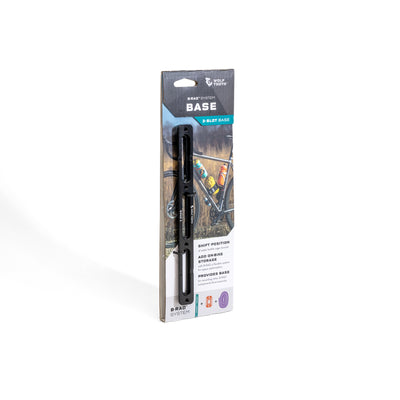

The 3-slot base with 4 threaded holes provides additional adjustment of up to 118mm and mounting options vs the B-RAD 2. A typical application would be to mount a bottle cage in the forward threaded holes or with a triple mount cage. This mounts perfectly to triple bottle mounts on frames and forks. The B-RAD 3 includes a recommended zip tie, channels for the zip tie, and a foam pad for secure mounting
- Weight: B-RAD 2 • 27g | B-RAD 3 • 41g |
- Material: 6061-T6 aluminum brackets | EVA foam pad Thickness: 6 mm
- Tools Needed: T25
- Torx Torque: 3-4 Nm
- Max Load: 1700g per base Made in the USA
For 2-Slot installation instructions please refer here
For 3-Slot installation instructions please refer here
